Home > > > [TS-231P3-4G-US]

TS-231P3-4G-US - 2BAY HIGH PERF PRIVATE CLD NAS W/2.5GBE NTWK ANNAPURNA LABS AL314



Product Details:

Enlarge

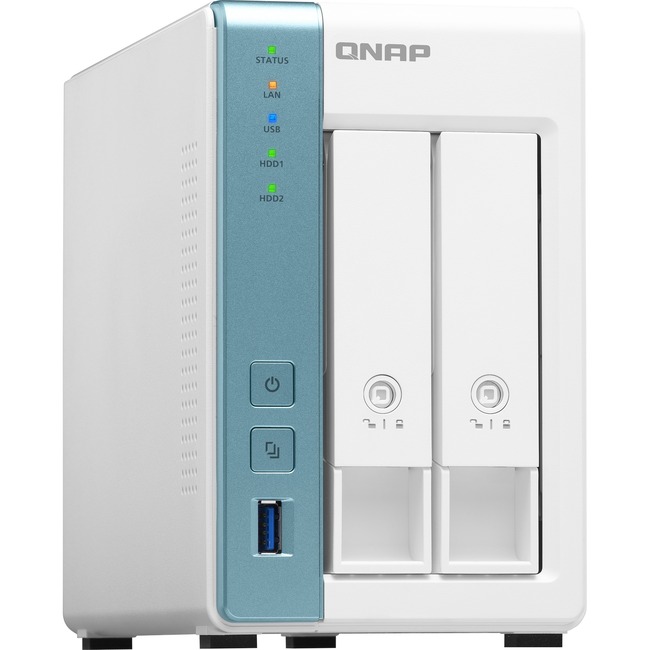

Image may differ from the actual product of model# TS-231P3-4G-US
QNAP
2BAY HIGH PERF PRIVATE CLD NAS W/2.5GBE NTWK ANNAPURNA LABS AL314
QNAP Quad-core 1.7GHz NAS with 2.5GbE and Feature-rich Applications for Home & Office - Annapurna Labs Alpine AL-314 Quad-core (4 Core) 1.70 GHz - 2 x HDD Supported - 0 x HDD Installed - 2 x SSD Supported - 0 x SSD Installed - 4 GB RAM DDR3 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, Hot Spare, JBOD - 2 x Total Bays - 2 x 2.5"/3.5" Bay - 2.5 Gigabit Ethernet - 3 USB Port(s) - Network (RJ-45) - QTS 4.4.2 - TCP/IP, IPv4, IPv6, DHCP, NAT, STP, HTTP, HTTPS, TLS, SSL, SSH, ... - 512
SKU#: 8FY549
Model#: TS-231P3-4G-US

UPC#: 00885022018918
MSRP: $359.00


    Our Price: $424.88
    Availability:   In Stock


    Qty:



General Information:

  Manufacturer: QNAP Systems
  Manufacturer Part Number: TS-231P3-4G-US
  Manufacturer Website Address: http://www.qnap.com
  Brand Name: QNAP
  Product Series: TS-x31P3
  Product Model: TS-231P3-4G
  Product Name: Quad-core 1.7GHz NAS with 2.5GbE and Feature-rich Applications for Home & Office
  Marketing Information:

Powered by Annapurna Labs Alpine AL-314, quad-core 1.7 GHz processor, 2GB DDR3L RAM, one 1GbE LAN port and one 2.5GbE LAN port, the TS-231P3 features a 2.5GbE RJ45 port, providing up to 2.5 times the speed of regular Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. The TS-231P3 ensures data security by supporting AES 256-bit encryption and various local/remote/cloud backup options - including snapshot protection that allows for files and data to be reverted to previously-recorded states if they are accidentally deleted, modified or affected by malware.

  • 2.5GbE connectivity for smoother everyday use and multimedia playback.

  • HBS backs up and synchronizes NAS data to remote servers or cloud storage, while QuDedup deduplicates data at the source to optimize bandwidth and storage utilization.

  • Snapshots fully record the system status and data. If files are accidentally deleted or modified, they can be quickly restored to previously-recorded states.

  • Supports LXC and Docker® containers for rapidly deploying application services across various platforms.

  • File Station centralizes NAS and cloud-based files for easy access. Files can also be easily encrypted to protect sensitive data.

  • Expand the TS-231P3 storage capacity by connecting TR and TL series storage enclosures.

Build a faster home network with QNAP

The TS-231P3 includes a 1GbE port and a 2.5GbE port to provide a smoother NAS experience and multimedia playback. Additional network connection options from QNAP include USB 3.2 Gen 1 to 5GbE adapters (supports N-BASET/Multi-Gig), QXG 5GbE PCIe cards, and QNAP QSW 10GbE switches. All these options allow users to revolutionize their home network at a cost-effective price. The TS-231P3 features three USB 3.2 Gen 1 port that delivers outstanding multitasking performance.

Easy and Secure File Management

File Station allows direct management of files stored on the TS-231P3 and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Users can also use Microsoft Office Online to directly view/edit Microsoft Office documents stored on the TS-231P3. Confidential/sensitive data can also be encrypted to add extra security.

Multi-Point File Backup, Access, and Sync

The TS-231P3 supports file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-231P3 becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps backup/synchronize data on the TS-231P3 to another QNAP NAS, remote server, or cloud storage for disaster recovery. Additionally, QuDedup technology greatly improves the efficiency of multi-version backup to destination storage, while optimizing storage utilization. You can install the QuDedup Extract Tool on your computer and restore deduplicated files to their normal status.

  Product Type: SAN/NAS Storage System

Storage:

  Number of Hard Drives Supported: 2
  Number of Hard Drives Installed: 0
  Number of Solid State Drive Supported: 2
  Number of Solid State Drive Installed: 0
  Flash Memory Capacity: 512 MB

Processor & Chipset:

  Processor Manufacturer: Annapurna Labs
  Processor Type: Alpine
  Processor Model: AL-314
  Processor Core: Quad-core (4 Core)
  Processor Speed: 1.70 GHz

Memory:

  Standard Memory: 4 GB
  Memory Technology: DDR3 SDRAM

Network & Communication:

  Ethernet Technology: 2.5 Gigabit Ethernet

I/O Expansions:

  Number of Total Expansion Bays: 2
  Number of 2.5"/3.5" Bays: 2

Controllers:

  Controller Type: Serial ATA/600
  RAID Supported: Yes
  RAID Levels: 0, 1, Hot Spare, JBOD

Interfaces/Ports:

  Total Number of USB Ports: 3
  Number of USB 3.2 Gen 1 Ports: 3
  Network (RJ-45): Yes
  Number of Network (RJ-45) Ports: 2

Software:

  Operating System: QTS 4.4.2

Management & Protocols:

  Protocols: TCP/IP
  Protocols: IPv4
  Protocols: IPv6
  Protocols: DHCP
  Protocols: NAT
  Protocols: STP
  Protocols: HTTP
  Protocols: HTTPS
  Protocols: TLS
  Protocols: SSL
  Protocols: SSH
  Protocols: FTP
  Protocols: CIFS/SMB
  Protocols: AFP
  Protocols: iSCSI
  Protocols: SMTP
  Protocols: WEBDAV
  Protocols: DDNS
  Protocols: UPnP
  Protocols: SNMPv2
  Protocols: SNMPv3
  Protocols: NFSv3
  Protocols: NFSv4
  Protocols: SFTP
  Protocols: TFTP
  Protocols: SSL/TLS
  Protocols: FXP
  Protocols: PPTP
  Protocols: L2TP
  Protocols: IPSec

Power Description:

  Maximum Power Supply Wattage: 60 W

Physical Characteristics:

  Height: 6.7"
  Width: 4"
  Depth: 8.6"
  Form Factor: Tower
  Weight (Approximate): 3.22 lb

Miscellaneous:

  Package Contents:
  • Quad-core 1.7GHz NAS with 2.5GbE and Feature-rich Applications for Home & Office
  • 1 x Ethernet Cable
  • 1 x Power Cord
  • AC Adapter
  • 16 x Flat Head Screws (for 3.5" HDD)
  • 12 x Flat Head Screws (for 2.5" HDD)
  • Quick Installation Guide (QIG)
  Country of Origin: Taiwan

Warranty:

  Limited Warranty: 2 Year
 TS-231P3-4G-US Image Gallery:
