Home > > > [220-G5-0750-X1]

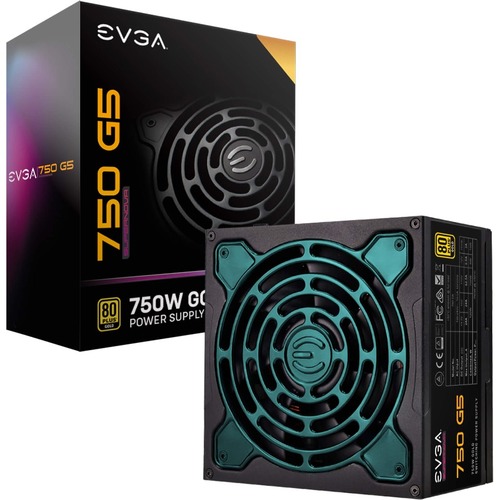

220-G5-0750-X1 - SUPERNOVA 750W G5 PSU


Product Details:


Image may differ from the actual product of model# 220-G5-0750-X1
EVGA SuperNOVA 750 G5 Power Supply - Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 24 A, 5 V DC @ 24 A, 12 V DC @ 62.5 A, 12 V DC @ 500 mA, 5 V DC @ 3 A Output - 750 W - 1 +12V Rails - 1 Fan(s) - ATI CrossFire Supported - NVIDIA SLI Supported - 91% Efficiency
SKU#: 6WY232
Model#: 220-G5-0750-X1

UPC#: 00843368062118
MSRP: $149.99

    Price: $162.12
    Availability:   Call to Order


General Information:

  Manufacturer: EVGA Corporation
  Manufacturer Part Number: 220G50750X1
  Manufacturer Website Address:
  Brand Name: EVGA
  Product Line: SuperNOVA
  Product Series: G5
  Product Model: 750 G5
  Product Name: SuperNOVA 750 G5 Power Supply
  Marketing Information:

The EVGA SuperNOVA G5 joins the elite ranks of the EVGA 80 PLUS Gold power supplies. As the successor to the award-winning G3 series, the G5 power supplies continue to push the envelope with the latest certifications and Intel power-on standards. Starting with 80 PLUS Gold certification, a fully-modular cable design, 100% Japanese capacitors, and an ultra-quiet 135mm Fluid Dynamic bearing fan with EVGA ECO mode, these power supplies are built for performance and silence.

  Product Type: Power Supply

Technical Information:

  Specification Compliance: ATX12V/EPS12V
  Efficiency: 91%
  Number of Fans: 1
  Modular: Yes
  ATI CrossFire Supported: Yes
  NVIDIA SLI Supported: Yes

Power Description:

  Input Voltage: 120 V AC
  Input Voltage: 230 V AC
  Number of +12V Rails: 1
  Output Voltage: 3.3 V DC
  Output Voltage: 5 V DC
  Output Voltage: 12 V DC
  Output Voltage Detail: 3.3 V DC @ 24 A
  Output Voltage Detail: 5 V DC @ 24 A
  Output Voltage Detail: 12 V DC @ 62.5 A
  Output Voltage Detail: 12 V DC @ 500 mA
  Output Voltage Detail: 5 V DC @ 3 A
  Output Current: 24 A
  Output Current: 62.50 A
  Output Current: 500 mA
  Output Current: 3 A
  Output Power: 750 W

Physical Characteristics:

  Form Factor: Internal
  Height: 3.4"
  Width: 5.9"
  Depth: 5.9"


  Environmentally Friendly: Yes
  Country of Origin: Taiwan


  Limited Warranty: 10 Year
 220-G5-0750-X1 Image Gallery:


SUPERNOVA 750W G5 PSU220-G5-0750-X1
