HPC-8316TE-00A1E - 3U STORAGE CHASSIS FOR EATX/ATX MICRO ATX SVR SATA 6GB/S BACKPLA

Product Details:

Enlarge

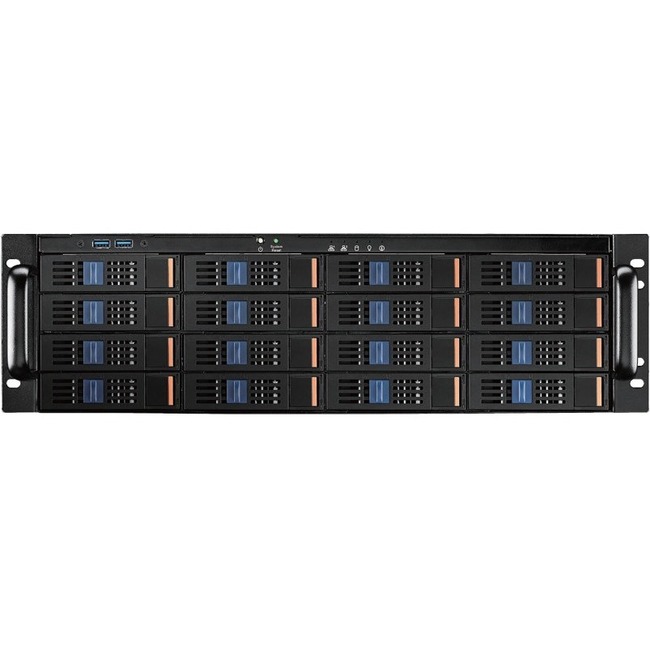

Image may differ from the actual product of model# HPC-8316TE-00A1E

ADVANTECH
3U STORAGE CHASSIS FOR EATX/ATX MICRO ATX SVR SATA 6GB/S BACKPLA
Advantech HPC-8316 Server Case - Rack-mountable - 3U - 18 x Bay - 4 x 3.15" x Fan(s) Installed - 0 - ATX, Micro ATX, EATX Motherboard Supported - 6 x Fan(s) Supported - 2 x Internal 2.5" Bay - 6x Slot(s) - 2 x USB(s)

SKU#: 6TZ216
Model#: HPC-8316TE-00A1E

UPC#:
MSRP: ~~$1,189.00~~

General Information:

Manufacturer: Advantech Co., Ltd

Manufacturer Part Number: HPC-8316TE-00A1E

Manufacturer Website Address: http://www.advantech.com

Brand Name: Advantech

Product Model: HPC-8316

Product Name: HPC-8316 Server Case

Marketing Information:

3U Storage Chassis for EATX/ATX/Micro ATX Serverboards with 16 Hot-Swappable Drive Bays

3U rackmount chassis supports EATX/ATX/Micro ATX serverboards
Features 16 hot-swappable drive bays for 3.5/2.5" SAS 12 Gb/s or SATA 6 Gb/s drives
Two rear 2.5" SATA drive bays with an optional hot-swappable bay for SAS SKUs
Two front-accessible USB 3.0 ports
Eliminates the need for an additional HBA card for SATA SKU chassis

Product Type: Server Case

Technical Information:

Motherboard Supported: ATX

Motherboard Supported: Micro ATX

Motherboard Supported: EATX

Number of Fans Supported: 6

Number of Fans Installed: 4

Installed Fan Size: 3.15"

Bays:

Number of Internal 2.5" Bays: 2

Number of Total Expansion Bays: 18

I/O Expansions:
