Home > > > [HPC-8224SE-R8A1E]

HPC-8224SE-R8A1E - 2U STORAGE CHASSIS FOR EATX/ATX MICROATX SERVER 800W RPS


Product Details:

Enlarge

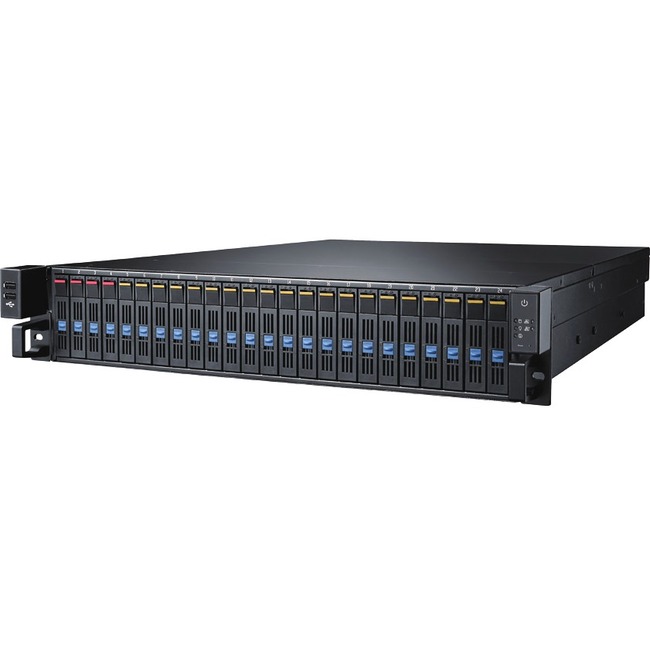

Image may differ from the actual product of model# HPC-8224SE-R8A1E 		ADVANTECH
2U STORAGE CHASSIS FOR EATX/ATX MICROATX SERVER 800W RPS
Advantech HPC-8224 Server Case - Rack-mountable - 2U - 24 x Bay - 4 x 3.15" x Fan(s) Installed - 2 x 800 W - Power Supply Installed - ATX, Micro ATX, EATX Motherboard Supported - 24 x External 2.5" Bay - 6x Slot(s) - 2 x USB(s)
SKU#: 6TZ212
Model#: HPC-8224SE-R8A1E
UPC#:
MSRP: $2,191.00


    Price: $2,215.62
    Availability:   Call to Order




General Information:
  Manufacturer: Advantech Co., Ltd
  Manufacturer Part Number: HPC-8224SE-R8A1E
  Manufacturer Website Address: http://www.advantech.com
  Brand Name: Advantech
  Product Model: HPC-8224
  Product Name: HPC-8224 Server Case
  Marketing Information:

2U Storage Chassis for EATX/ATX/Micro ATX Serverboards with 24 Hot-Swappable Drive Bays

  • 2U rackmount chassis supports ATX/EATX motherboard
  • 24-bay hot-swappable 2.5" SAS 12Gb/s drives or SATA 6Gb/s drives
  • 4 x NVMe drives supported via an optional riser card
  • Default 7x slots (low profile) rear panel, 3x slots (full height) optional
  • Supports Flex ATX Power, 80+ redundant power supply
  Product Type: Server Case

Technical Information:
  Motherboard Supported: ATX
  Motherboard Supported: Micro ATX
  Motherboard Supported: EATX
  Number of Fans Installed: 4
  Installed Fan Size: 3.15"

Bays:
  Number of External 2.5" Bays: 24
  Number of Total Expansion Bays: 24

I/O Expansions:
  Number of Total Expansion Slots: 6

Interfaces/Ports:
  Total Number of USB Ports: 2

Power Description:
  Power Supply Installed: Yes
  Number of Power Supplies Supported: 2
  Number of Power Supplies Installed: 2
  Power Supply Wattage: 800 W

Physical Characteristics:
  Compatible Rack Unit: 2U
  Form Factor: Rack-mountable
  Height: 3.5"
  Width: 17.2"
  Depth: 24.4"
  Weight (Approximate): 55.12 lb

Miscellaneous:
  Country of Origin: China
 HPC-8224SE-R8A1E Image Gallery:
