PCE-D9-04-CBL - 4-PORT PCI EXPRESS SERIAL CARD DB9 RS232 PCIE W/ BREAKOUT CABLE
|
|
|
Product Details:
Enlarge
Image may differ from the actual product of model# PCE-D9-04-CBL
|
TRIPP LITE BY EATON CONNECTIVITY
4-PORT PCI EXPRESS SERIAL CARD DB9 RS232 PCIE W/ BREAKOUT CABLE
Tripp Lite 4-Port DB9 (RS-232) Serial PCI Express (PCIe) Card with Breakout - PCI Express x1 - 4 x DB-9 Male RS-232 Serial Via Cable - Plug-in Card
SKU#: 4G5368
Model#: PCE-D9-04-CBL
|
UPC#: 00037332193636
MSRP: $188.97
|
|
|
|
|
General Information:
|
|
Manufacturer: Tripp Lite by Eaton
|
|
Manufacturer Part Number: PCE-D9-04-CBL
|
|
Manufacturer Website Address: http://www.tripplite.com
|
|
Product Model: PCE-D9-04-CBL
|
|
Product Name: 4-Port DB9 (RS-232) Serial PCI Express Card
|
Marketing Information: The PCE-D9-04-CBL 4-Port DB9 Serial PCI Express Card adds four DB9 serial ports to your computer or server. By adding the PCE-D9-04-CBL to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer. Its single-chip design provides optimum reliability and speed, reducing your CPU's load from conventional bridge-chip cards and saving you money.
Perfect for home or office, the PCE-D9-04-CBL supports data transfer rates up to 250 Kbps on each port with throughput up to 2.5 Gbps. It easily installs inside your computer in just a few minutes. The standard bracket's one-lane (x1) interface is compatible with x4, x8 and x16 PCIe slots. Connect the included DB9 breakout cable to the card's HD44 port, and allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don't).
The PCE-D9-04-CBL is fully compliant with PCI Express Revision 1.1 and compatible with industrial standard 16450/16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; 5-, 6-, 7- and 8-bit serial formats; Even, Odd, None, Space and Mark parity; 1- or 2-stop bit operation; and re-map function for legacy ports.
|
|
Product Type: Multiport Serial Adapter
|
Technical Information:
|
|
Host Interface: PCI Express x1
|
|
Maximum Data Transfer Rate: 2.50 Gbit/s
|
Interfaces/Ports:
|
|
Number of Serial Ports: 1
|
|
Ports Expandability: 4 x DB-9 RS-232 - Serial, Via Cable
|
Physical Characteristics:
|
|
Form Factor: Plug-in Card
|
Miscellaneous:
|
Package Contents: - 4-Port DB9 (RS-232) Serial PCI Express Card
- DB9 Breakout Cable (HD44 to 4x DB9 M/M)
- Driver CD
- Owner's Manual
|
|
Environmentally Friendly: Yes
|
|
Environmental Certification: RoHS
|
Warranty:
|
|
Limited Warranty: 2 Year
|

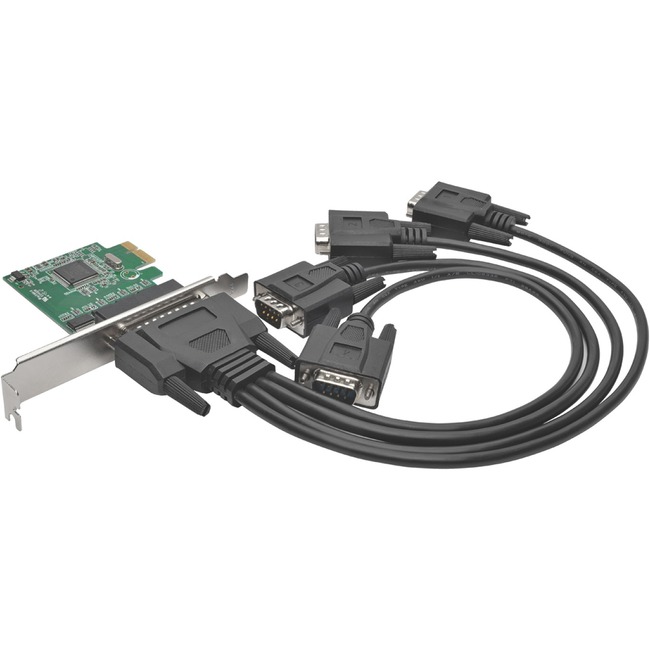

PCE-D9-04-CBL Image Gallery:
|
|
