General Information:
|
|
Manufacturer: Supermicro Computer, Inc
|
|
Manufacturer Part Number: CSE-514-R400W
|
|
Manufacturer Website Address: http://www.supermicro.com
|
|
Product Line: SuperChassis
|
|
Product Model: SC514-R400W
|
|
Product Name: SuperChassis 514-R400W (No Paint)
|
Marketing Information: 1U SuperChassis 514
Supermicro's SC514 1U cost-effective chassis, featuring a short depth less than 16.9" , is design for resource optimized while providing high performance. Optimized for dual-processor or single-processor motherboard. The SC514 features an advanced thermal design for highly efficient cooling and quiet operation with up to 6x 4cm counter-rotating cooling fans, and supports a complete selection of high-efficiency power supplies to fit exactly the desired application. Tooless serviceability and quick release sliding rails are also available for deploying in HPC and data center environments.
|
|
Product Type: Server Case
|
Technical Information:
|
|
Number of Fans Supported: 6
|
Bays:
|
|
Number of External 2.5" Bays: 2
|
|
Number of Total Expansion Bays: 2
|
I/O Expansions:
|
|
Number of Total Expansion Slots: 3
|
Power Description:
|
|
Power Supply Installed: Yes
|
|
Power Supply Wattage: 400 W
|
Physical Characteristics:
|
|
Compatible Rack Unit: 1U
|
|
Form Factor: Rack-mountable
|
Miscellaneous:
|
Package Contents: - SuperChassis 514-R400W (No Paint)
- 2 x 1U 400W Redundant Short Depth Power Supply
- 1 x 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
- 1 x Front ctrl cable Round 16 pin to 16 pin, 40cm, 28AWG
- 2 x US power cord 18AWG 6ft, PBF (default for low watt)
- 4 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
- 1 x Front control board (FP512) for SC512 (surface-mounted LED)
- 3 x SC818G 2x 4056 fan tray,HF,RoHS,PBF
- 2 x Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
- 1 x Dual 2.5" fixed HDD bracket for SC514,515,HF,RoHS/REACH
- 1 x set Inner rail, front, short, quick-release type
- 1 x set Outer rail, quick-release type, 25.6
- 1 x D-rear window, riser card bracekt + PCIE L-bracket part
- 1 x D-rear window, retention part
- 1 x I/O window for SC514 redudant PWS chassis (chagneable)
|

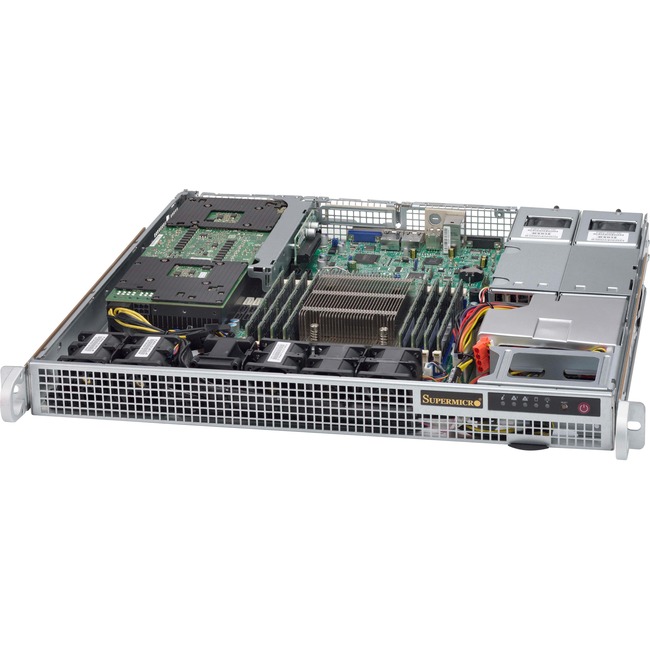

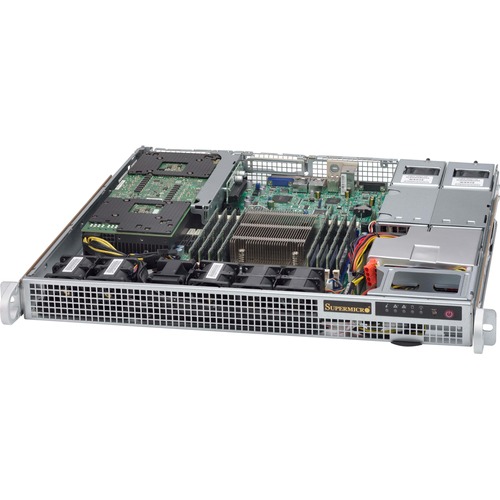

CSE-514-R400W Image Gallery:
|
