U03N11L - SZ UPS 3KVA 2U 120V SINGLE PH EA
|
|
|
Product Details:
Enlarge

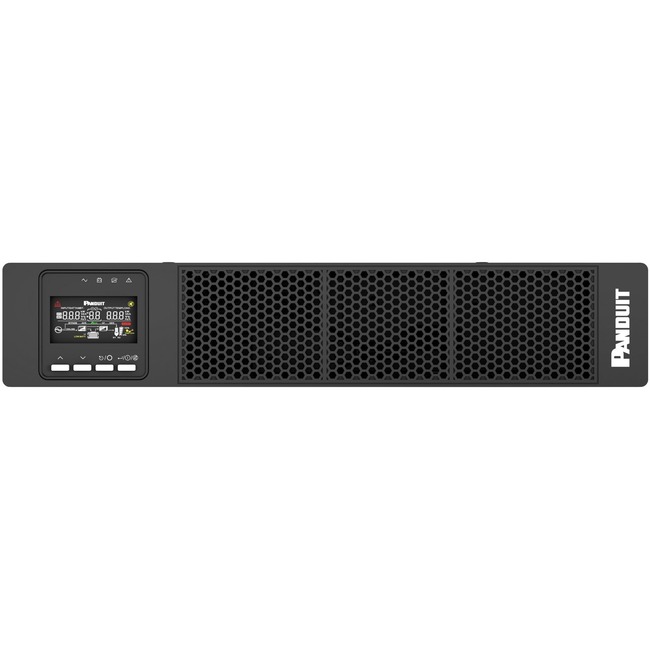

Image may differ from the actual product of model# U03N11L
|
PANDUIT
SZ UPS 3KVA 2U 120V SINGLE PH EA
Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS - 2U Rack/Tower/Compact, Rail Mountable - AVR - 4 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Single Phase - Serial Port - 1 x NEMA L5-30R, 2 x NEMA 5-20R
SKU#: 02KN94
Model#: U03N11L
|
UPC#:
MSRP: $5,217.84
|
|
|
|
|
General Information:
|
|
Manufacturer: PANDUIT CORP
|
|
Manufacturer Part Number: U03N11L
|
|
Manufacturer Website Address: http://www.panduit.com
|
|
Product Name: SmartZone U03N11L 3000VA Rack/Tower/Compact UPS
|
|
Marketing Information: The Panduit ® SmartZone™ Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
|
|
Product Type: Line-interactive UPS
|
Technical Information:
|
|
AVR: Yes
|
|
Plug/Connector Type: NEMA L5-30P
|
|
Receptacle Type: NEMA L5-30R
|
|
Receptacle Type: NEMA 5-20R
|
|
Receptacle Detail: 1 x NEMA L5-30R
|
|
Receptacle Detail: 2 x NEMA 5-20R
|
|
Dataline Protection: RJ-45
|
|
Application/Usage: Data Center
|
|
Application/Usage: IT Equipment
|
|
Application/Usage: Enterprise
|
|
Application/Usage: Computer
|
|
Application/Usage: Edge Computing
|
Power Description:
|
|
Load Capacity: 3000 VA/2700 W
|
|
Input Voltage Range: 75 V AC - 146 V AC
|
|
Waveform Type: Pure Sine Wave
|
Controls/Indicators:
|
|
Status Indicators: Colorful LCD with four buttons and LED indicators
|
Interfaces/Ports:
|
|
Serial Port: Yes
|
|
USB (HID Compliant) Port: Yes
|
Battery Information:
|
|
DC System Voltage: 76.8 V DC
|
|
Battery Chemistry: Lithium-Ion (LiFePO4)
|
|
Backup/Run Time With External Battery Cabinet (Full Load): 9 Minute
|
|
Backup/Run Time With External Battery Cabinet (Half Load): 22 Minute
|
|
Typical Battery Recharge Time: 4 Hour
|
Environmental Conditions:
|
|
Maximum Operating Elevation: 9842.52 ft
|
|
Storage Temperature: -13°F (-25°C) - 131°F (55°C)
|
|
Maximum Operating Temperature: 104°F (40°C)
|
|
Thermal Dissipation: 97.89 W
|
Physical Characteristics:
|
|
Product Color: Black
|
|
Form Factor: Rack/Tower/Compact
|
|
Form Factor: Rail Mountable
|
|
Weight (Approximate): 68.34 lb
|
Miscellaneous:
|
Package Contents: - SmartZone U03N11L 3000VA Rack/Tower/Compact UPS
- Intelligent Network Management Card
|
|
Software Included: SmartZone Cloud Ready
|
|
Environmentally Friendly: Yes
|
|
Environmental Certification: RoHS
|
|
Environmental Certification: REACH
|
|
Environmental Certification: ENERGY STAR 2.0
|
Warranty:
|
|
Limited Warranty: 5 Year
|
|
Additional Warranty Information: 5 Years (UPS & Battery)
|
