Product Details:
Enlarge

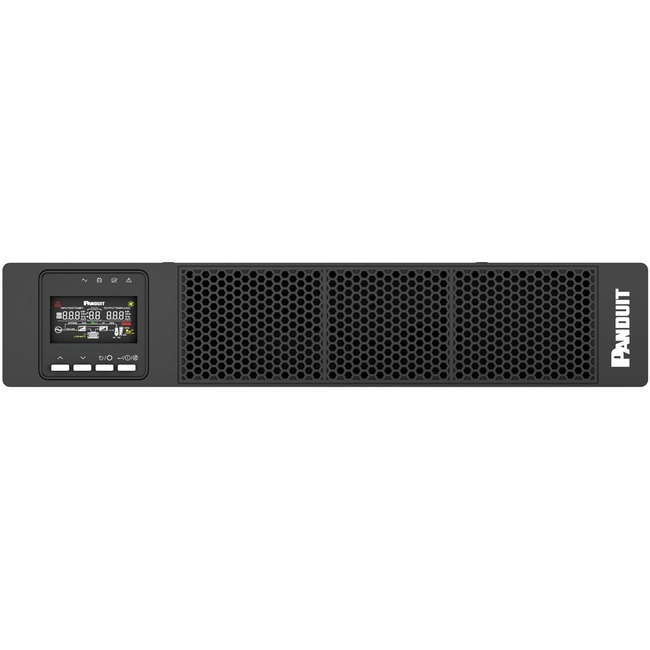

Image may differ from the actual product of model# U03S11V
|
PANDUIT
SZ UPS 3KVA 2U 120V SINGLE PH EA
Panduit SmartZone U03S11V 3000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 1 x NEMA L5-30R, 4 x NEMA 5-20R
SKU#: 02KN78
Model#: U03S11V
|
UPC#:
MSRP: $2,654.28
|
|
|
|
|
General Information:
|
|
Manufacturer: PANDUIT CORP
|
|
Manufacturer Part Number: U03S11V
|
|
Manufacturer Website Address: http://www.panduit.com
|
|
Product Name: SmartZone U03S11V 3000VA Rack/Tower UPS
|
|
Marketing Information: The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
|
|
Product Type: Double Conversion Online UPS
|
Technical Information:
|
|
AVR: Yes
|
|
Plug/Connector Type: NEMA L5-30P
|
|
Receptacle Type: NEMA 5-20R
|
|
Receptacle Type: NEMA L5-30R
|
|
Receptacle Detail: 1 x NEMA L5-30R
|
|
Receptacle Detail: 4 x NEMA 5-20R
|
|
Dataline Protection: RJ-45
|
|
Application/Usage: Data Center
|
|
Application/Usage: IT Equipment
|
|
Application/Usage: Enterprise
|
|
Application/Usage: Computer
|
|
Application/Usage: Edge Computing
|
Power Description:
|
|
Load Capacity: 3000 VA/3000 W
|
|
Input Voltage Range: 55 V AC - 150 V AC
|
|
Input Voltage Range: 100 V AC - 125 V AC
|
|
Waveform Type: Pure Sine Wave
|
Controls/Indicators:
|
|
Status Indicators: Colorful LCD with four buttons and LED indicators
|
Interfaces/Ports:
|
|
Serial Port: Yes
|
|
USB (HID Compliant) Port: Yes
|
Battery Information:
|
|
DC System Voltage: 72 V DC
|
|
Battery Chemistry: Sealed Lead Acid (VRLA)
|
|
Battery Capacity: 9000 mAh
|
|
Backup/Run Time With External Battery Cabinet (Full Load): 4.60 Minute
|
|
Backup/Run Time With External Battery Cabinet (Half Load): 14.10 Minute
|
|
Typical Battery Recharge Time: 6 Hour
|
Environmental Conditions:
|
|
Maximum Operating Elevation: 9842.52 ft
|
|
Storage Temperature: -13°F (-25°C) - 131°F (55°C)
|
|
Maximum Operating Temperature: 104°F (40°C)
|
|
Thermal Dissipation: 234.75 W
|
Physical Characteristics:
|
|
Product Color: Black
|
|
Form Factor: Rail Mountable
|
|
Weight (Approximate): 56.66 lb
|
Miscellaneous:
|
|
Energy Star: Yes
|
|
Environmentally Friendly: Yes
|
|
Environmental Certification: RoHS
|
|
Environmental Certification: REACH
|
|
Environmental Certification: ENERGY STAR 2.0
|
Warranty:
|
|
Limited Warranty: 5 Year
|
Additional Warranty Information: - 3 Years for UPS
- 2 Years for Internal Battery and EBP
|
