Home > Power & Rack Equipment > Power Equipment > Uninterruptible Power Supplies > TRIPP LITE MASTER-POWER > [SU2000LCD1U]

SU2000LCD1U - UPS SMART ONLINE 2000VA 1600W 5-OUTLET LCD USB DB9 CARD SLOT 1U



Product Details:

Enlarge

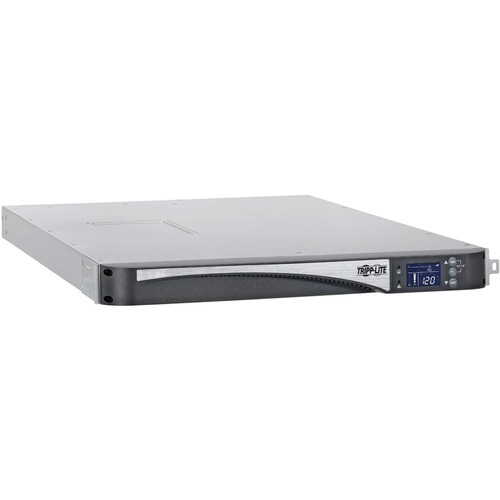

Image may differ from the actual product of model# SU2000LCD1U
TRIPP LITE MASTER-POWER
UPS SMART ONLINE 2000VA 1600W 5-OUTLET LCD USB DB9 CARD SLOT 1U
Tripp Lite SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS - 1U Rack-mountable - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 100 V AC, 120 V AC, 127 V AC Output - 5 x NEMA 5-15/20R
SKU#: 00GG35
Model#: SU2000LCD1U

UPC#: 00037332238146
MSRP: $1,580.40


    Our Price: $892.97
    Availability:   In Stock


    Qty:



General Information:

  Manufacturer: Tripp Lite by Eaton
  Manufacturer Part Number: SU2000LCD1U
  Manufacturer Website Address: http://www.tripplite.com
  Brand Name: Tripp Lite
  Product Line: SmartOnline
  Product Model: SU2000LCD1U
  Product Name: SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS
  Marketing Information:

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1600W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the SmartOnline® SU2000LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room.

Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Five NEMA 5-20R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for any application supported by in-rack IT equipment, including servers, switches, phone systems, kiosks and high-end engineering and A/V computer systems.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (800W) and three minutes at full load (1600W), keeping protected equipment operational through power failures. The intelligent battery management system with temperature-compensated charging extends battery life.

ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.

Set Output Frequency to Match That of Your Connected Equipment
Using the UPS in Frequency Conversion mode will correct or convert the incoming frequency of 50 Hz to output 60 Hz (and vice versa).

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD features eight selectable screens of UPS data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status. On-screen operational diagram offers an easy-to-grasp visual representation of on-line, battery and ECO/Bypass modes.

Advanced Communications Ports Allow for Automatic Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended system shutdown in case of a prolonged power failure. Wireable ports enable EPO (Emergency Power Off) and ROO (Remote Off/On) operation for UPS emergency and daily operation preferences. RS-232 and USB cables are included.

  Product Type: Dual Conversion Online UPS

Technical Information:

  Plug/Connector Type: NEMA 5-20P
  Receptacle Type: NEMA 5-15/20R
  Receptacle Detail: 5 x NEMA 5-15/20R
  Transfer Time: 0 ns
  Phase: Single Phase
  Application/Usage: Network Equipment
  Application/Usage: Server
  Application/Usage: Network Closet
  Application/Usage: Computer Room
  Application/Usage: IT Equipment
  Application/Usage: Switch
  Application/Usage: Phone
  Application/Usage: Kiosk
  Application/Usage: High-end System

Power Description:

  Load Capacity: 2000 VA/1600 W
  Input Voltage: 120 V AC
  Output Voltage: 100 V AC
  Output Voltage: 120 V AC
  Output Voltage: 127 V AC
  Waveform Type: Pure Sine Wave

Battery Information:

  Battery Chemistry: Sealed Lead Acid (VRLA)
  Backup/Run Time (Full Load): 3 Minute
  Backup/Run Time (Half Load): 10 Minute
  Hot Swappable: Yes
  Typical Battery Recharge Time: 8 Hour
  Replaceable Battery: Yes

Physical Characteristics:

  Height: 1.7"
  Width: 17.3"
  Depth: 28"
  Rack Height: 1U
  Form Factor: Rack-mountable
  Weight (Approximate): 48.50 lb

Miscellaneous:

  Package Contents:
  • SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS
  • USB Cable
  • RS-232 Cable
  • Rack-Mounting Hardware
  • Owner's Manual
  Energy Star: Yes
  Environmentally Friendly: Yes
  Environmental Certification: RoHS
  Country of Origin: China

Warranty:

  Limited Warranty: 2 Year
